Using HTML for online stimuli¶
Introduction¶
Summary of previous session¶
Learn how to easily adapt how a trial goes (adding a blank after a trial…)
Get familiar with reading the (jspsych) documentation
Learn to use timeline variables
Use a plugin in jspsych which allow you to display html formatted pages
Give feedback
Why learn HTML¶
When running an experiment, you generally want to display stimuli. One way to do it is to load successive images, which you can do using some plugins from jsPsych. However, this method has many drawbacks.
It cannot create very responsive stimuli (e.g. follow your mouse)
You have to generate all possible images beforehand
Your participant has to load every single image, which may be very limiting if they don’t have a stable connection (e.g., schools!)
Today’s objective¶
Tags in HTML
Format text with HTML & CSS
Understand the structure of a HTML page
Draw on canvas with JavaScript
Integration in jsPsych
(if time) feedback
HTML: the basics¶
We will focus today on text elements (e.g., for instructions), divisors and canvas. As all HTML elements, they are defined between tags, of the form <(tag-name)>(content)</(tag-name)>. There are opening and closing tags that surround content: you may just think of them as brackets!
<!DOCTYPE html>
<html>
<head>
<title>HTML basic elements</title>
</head>
<body>
<!-- HTML description goes here! -->
This is just plain text
<p>This is a paragraph!</div>
<div>This is a divisor!</div>
<!-- Note: this will not actually show up: more on this later -->
<canvas>This is a canvas!</canvas>
</body>
</html>
Text¶
Paragraphs & Headers¶
Just like a LibreOffice, Word or Google document, HTML allows you to define several levels of text. The base unit is the paragraph (<p>). Anything within a paragraph will simply be rendered as a single chunk of text (there are ways to add line breaks, though). In other word, HTML ignores line breaks! Successive paragraphs will be displayed on different line… like successive paragraphs in a book!
<p>This is the first line of a paragraph.
This is the second line of a paragraph, and it is on the same line as the first.</p>
<p>This is another paragraph.</p>
You can also introduce titles, with several levels of depth: the highest is defined with <h1>, and then <h2>, <h3>, <h4>…
Small exercise (5 mn):
Rewrite this lecture page from the title to this section, using html paragraphs and titles. You can ignore code blocks. SOLUTION TO COME
Special fonts¶
Beyond plain text, you can also specify some text formats, such as bold and italic text (see here for a longer list). Try the following codes:
<p> This text should be <b>bold</b></p>
<p> This text should be <i>italic</i></p>
<p> This text should be <strong>bold</strong></p>
<p> This text should be <em>italic</em></p>
Why do we have two possible tags for each font style? Well, first, some of you may actually see some differences: <strong> and <em> do not always entail bold and italic text. These tags only serve to emphasize the text, which is handled differently by some browsers.
Styling¶
Coloring text¶
Sometimes, we may want to do other things than simply bolden or italicize the text, and HTML does not necessarily provide built-in tags for that. This is were styles come in.
In HTML, style is an attribute of an element. It is defined in the opening tag of said element: <(element-name) style="(style)">. You can define a style by specifying as many properties as you want, with the syntax "property: value;", separating two parameters by a semicolon ;. This syntax is that of yet another language in our toolbox: CSS.
<p>This text is <strong style="color: blue">blue and bold</strong>.</p>
Here, the text is bold because we use <strong>, which your browser handles by a bolded font. If you want some basic text instead, you can use <span> instead!
Small exercise (in class): You can actually have bold text within a span. There are two ways to do it. What could they be? Hint for one of them: all the HTML elements we saw before appear like this because your browser has a default style for them. You will find more details here: https://www.w3schools.com/cssref/css_default_values.php. Try to implement your solutions!
There are more values you can use: font-family, font-size… We will focus on some specific properties: text-align, and border properties
Centering text¶
You can specify how the text is aligned with text-align.
<p style="text-align: center">This text is centered!<p>
Can you right-align it now? By the way JsPsych always displays the text centered, unlike our HTML texts from before. How come? Using the inspector, you can look at the CSS properties of any element: you will see that for all paragraphs, jsPsych specifies that it must be centered! This is done using a CSS file: we wont go into the details of it, but know that this is possible (and frequent!).
Outlining the border of the text¶
You should now be a bit more familiar with how to bracket text within tags, and how to style them somehow. But how does this work under the hood? We can use the inspector to get an idea, but you can also make elements more visible on your page. As you can guess, it will require styling, applied to the border of the element.
Try the following code, and look at the result.
<h1 style="background-color:black; color: white">
This is a title
</h1>
<p style="background-color:black; color: white">
This is a first paragraph
</p>
<p style="background-color:black; color: white">
This is a second paragraph, longer than the first.
</p>
<p style="background-color:black; color: white; text-align: center">
This is a third, centered paragraph
</p>
As you can see, html elements, by default, stack on top of each other and their width almost span the whole page. Their height is defined by that of their content, but they leave some space (called margin) around them. In the following section, we will see how to change this organisation.
Short summary¶
So far, you should have learned how to bracket and nest elements within tags. You also have understood the basic concepts of styling, and see how you can see the shape of your divisors.
Divisors¶
Divisors are HTML’s the most basic element: think of it as a box that surround content: look at the divisors shape in the below example.
<div style="background-color: grey">
<p style="background-color:black; color: white; text-align: center;">
This is a third, centered paragraph
</p>
</div>
As you can see, this defines a grey box that contains all the previous text without any margin. What if we play with this?
Margin and padding¶
In HTML, some properties require units. Try to define the margin property of our div to 5 pixels (5px). What happens if you drop the px unit?
And now, try to see the difference if you set padding to 5 pixels instead.
You should something off: there is some added gray on top and bottom on the paragraph, which is definitely greater than 5 pixels. Why ?
If you use your inspector, you may notice that the content of the divisor is indeed surrounded by a 5-pixel wide gray band… and contains the big grey chunk within it. This is because our <p> element has a margin as well!
In other words: margin is the space around the border of an element; padding is the space around its content.
Illustration of margin (here 0px) and padding (here 5px) (note that you can also play with the border, but we don’t discuss it here).
Specifying different margins/paddings in different directions. You can specify different paddings by specifying four values split by values like in the code before. The order is fixed: top, left, bottom and right.
<div style="background-color: grey; padding: 0px 5px 10px 15px">
<p style="background-color:black; color: white; text-align: center; margin: 0">
This is a third, centered paragraph
</p>
</div>
Exercise (15 minutes): Starting back from the code below:
write the paragraphs and title in black on a white background
put this in a div with a black background, so that there is 5 pixels between paragraphs the border of the div (both vertically and horizontally!).
make it so you have 10 pixels between paragraphs.

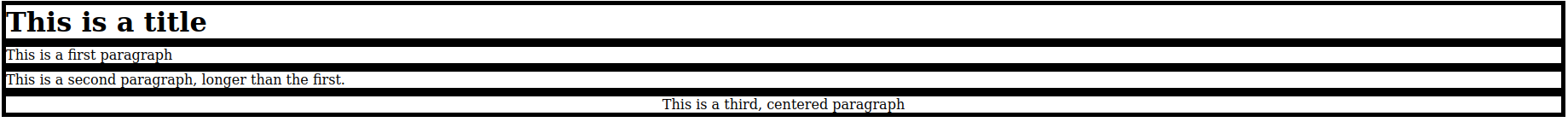

This is what you should get at the end.
Starting code:
<h1 style="background-color:black; color: white">
This is a title
</h1>
<p style="background-color:black; color: white">
This is a first paragraph
</p>
<p style="background-color:black; color: white">
This is a second paragraph, longer than the first.
</p>
<p style="background-color:black; color: white; text-align: center">
This is a third, centered paragraph
</p>
The solution is here.
Defining shape¶
When it comes to the shape of an element there are three properties that will interest us: height, width, and border-radius. All requires units.
Height and width should be pretty explanatory: we will simply mention that you can define the height and width of an element (e.g. a paragraph) with absolute units (e.g., pixels px), or relative units: (e.g., percents %, which depend on the size of the parent element)
Border radius defines how round the corners of an element are. We will simply remember the 50% value to create circles.
<div style="width: 600px; height: 200px; background-color: red; margin: 10px"> This is a red rectangle of 600px by 300px</div>
<div style="width: 80%; height: 20%; background-color: orange; margin: 10px"> This is an orange rectangle of 80% of the document body by 30%</div>
<div style="width: 300px; height: 300px; background-color: orange; margin: 10px">Look! A circle!</div>
Positioning¶
In HTML, you have many ways of positioning objects. We will focus on two here:
absolute (you place items relative to the page’s borders)
relative (you place items relative to the parent element borders)
You can specify the type of positioning you want with the position property in the style of your element. Then, you can use top, left, right, and bottom to specify where to place the element.
<div style="background-color: grey">
<p style="position: relative; top:40px; left: 40px">This paragraph is placed relative to the div</p>
<p style="position: absolute; top:40px; left: 40px">This paragraph is place with absolute positioning</p>
</div>
You can play a bit more with positioning on this page.
Creating HTML with JavaScript¶
So far, we have been writing a description of our webpage using HTML. However, there are several reasons to want to use JavaScript to create the page.
First, writing everything in HTML can be tedious if you have many elements.
Second, HTML, by default, is strongly NOT responsive, meaning that you almost only display static things.
At last, jsPsych is based on JavaScript, so… we need to use it at some point.
From now on, all our files will create HTML description from scratch.
HTML as a string¶
As we’ve seen with jsPsych (see the stimulus parameter of any plugin), HTML can be simply written as a string, as long as you follow the HTML format. In jsPsych, we then only have to give the HTML as a parameter. Here, we have to use it ourselves by defining it as the innerHTML of an element.
element.innerHTML = "<p>This is a paragraph added with JavaScript!</p>";
It can sometimes be convenient to overwrite anything that is on the page. To do so, you can use the global variable document, which to the current HTML script, and call document.body to access its <body> element, as in this example.
If you don’t want to override everything, you can use the += operator instead.
Small exercise (5mn):
Make a code displaying twenty numbered lines, by using a for loop (we talked about them here).
Accessing elements¶
But sometimes, we’ll want to access an element directly. You can brute force your way by calling the children property of any element (try document.body.children in your browser’s console).
The most straightforward way, however, is to call the document.getElementById(ID) method, which will allow you to an access an element based on its id. The id of an element is an attribute that is defined in the same way as its style. Note that each ID should be unique!
<div id="mydiv"></div>
Creating elements¶
In complex projects, what you will want to do is not only to access existing elements, but also create elements on the fly. The method document.createElement(type) returns an element of the desired type (div, p…).
let paragraph = document.createElement("p");
paragraph.innerHtml = "We just created a new paragraph!";
You will then be able to modify the element’s attributes, such as style which can be defined it with a CSS-formatted string (just like in HTML).
paragraph.style = "background-color: grey";
There is still one missing, crucial step: adding the element to the document! If you remember the nested-structure of HTML, you will first have to get the parent element of your newly created element, and then call its addChild method. In the example below, we will simply want to add it to the document body.
document.body.addChild(paragraph);
You can find a code summary of everything we discussed above in this script.
Exercise 1: (20 mn) Create a Hermann Grid illusion using JavaScript. Make it as clean as you can! Small hint: use divs to create some square!
SVGs¶
Divs can be convenient, quick ways to get basic shapes like circles and squares. However, more complex shapes will require you to actually specify how to draw them. In HTML, you have two main elements for this: canvas and svg. As the name suggest, canvas act like a canvas on which you can draw whatever you want. They require JavaScript for this, use a somewhat complicated syntax, and their individual elements can not be changed.
For these reasons, we will only focus on Scalable Vector Graphics (SVG) which are much more HTML-like. In fact, they work like most HTML elements: you nest individual stuff to draw into the svg tag.
You have some built-in specifications such as the circle shape. This one takes three specific parameters: cx and cy for the center coordinates, and r for the radius. All values have to be specified without units (since pixels will be applied by default). You can also, as for other shapes, specify information about fill and stroke (more info here).
<svg style = "height: 200px; width: 200px">
<circle cx="100" cy="100" r="100" fill="red"/>
</svg>
Another kind of shape you may want to draw is a polygon. Here, you only have to specify the points to draw it.
<svg style = "height: 200px; width: 200px">
<polygon points="0 0, 0 200, 200 200, 200 0" fill="red" />
</svg>
Small exercise (10mn): Create a function that draws/returns an equilateral triangle SVG with a blue border (and empty interior). The function should take the side length as a parameter. Call it to draw a triangle with a 300px-long border. Two pieces of advice: use pen and paper; and pay attention to the style of the SVG!
Final (?) words¶
With all we’ve seen, you should get a grasp on how to create varied stimuli. It may be slightly more complicated than python at times, but all this allows for clean and very versatile online experiments.
Below are some leftovers that were not included in the lecture but could be interesting to discuss if we have time.
Turning HTML content reactive: mouse movement.¶
The addEventListener method that you can call on any element.
function onMouseMove(e){
/* ... */
};
let trial = {
/* ... */
on_load: function(){
document.addEventListener("mousemove", onMouseMove);
},
on_finish: function(){
document.removeEventLister("mousemove", onMouseMove);
}
}
Life savers¶
on_close
preload
